Images are for reference only.
See Product Specifications for product details.
Buy JJDVUUG305NOPMRTR with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy JJDVUUG305NOPMRTR with confidence from wisdommobility.com, 1 Year Warranty

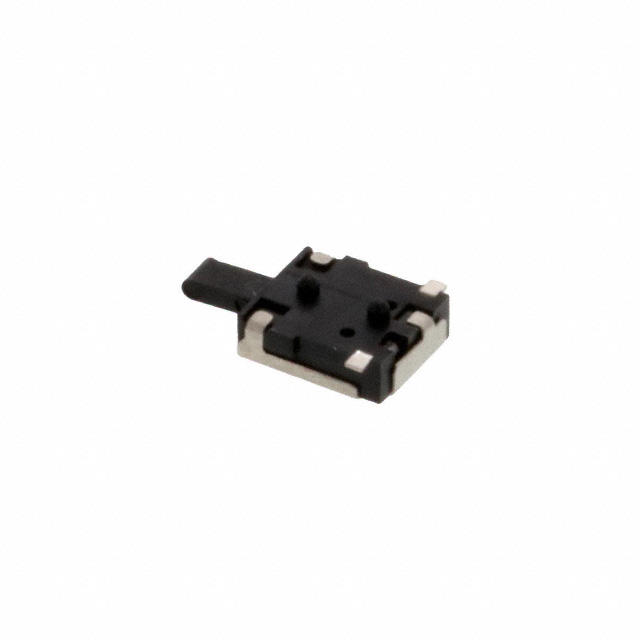

JJDVUUG305NOPMRTR
| Part No | JJDVUUG305NOPMRTR |
|---|---|
| Manufacturer | TE Connectivity Agastat Relays |
| Description | DET SW4.2X3.6X1.2 GW VERT.(UP) N |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
| Availability:3979 pcs | |||||
| Quantity | Unit Price | Ext. Price | |||
|---|---|---|---|---|---|
| 1+ | $0.8455 | $85 | |||
| 10+ | $0.8286 | $414 | |||
| 100+ | $0.8032 | $803 | |||
| 1000+ | $0.7779 | $778 | |||
| 10000+ | $0.744 | $744 | |||
| The above prices does not include taxes and freight rates, which will be calculated on the order pages. | |||||
Specifications
Data sheet
| Mounting Type: | Surface Mount |
|---|---|
| Packaging: | Cut Tape (CT) |
| Mechanical Life: | 50,000 Cycles |
| Operating Position: | 0.063" (1.6mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Actuator Type: | Angled Toggle (Detector) |
| Switch Function: | Off-Mom |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Electrical Life: | 50,000 Cycles |
| Termination Style: | Gull Wing |
| Overtravel: | - |
| Pretravel: | 0.057" (1.45mm) |
| Email: | sale@wisdommobility.com |
| Series: | JJD |
| Release Force: | - |
| Operating Force: | 40gf |
| Voltage Rating - DC: | 5V |
| Other Names: | 450-3309-1 |
| Differential Travel: | - |
| Ingress Protection: | - |
| Features: | Board Guide |
| Operating Temperature: | -10°C ~ 60°C |
| Current Rating: | 10mA (DC) |
| Circuit: | SPST-NO |
Introduce
We can supply JJDVUUG305NOPMRTR , send us a request quote to request JJDVUUG305NOPMRTR pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JJDVUUG305NOPMRTR.The price and lead time for JJDVUUG305NOPMRTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part JJDVUUG305NOPMRTR.We look forward to working with you to establish long-term relations of cooperation
