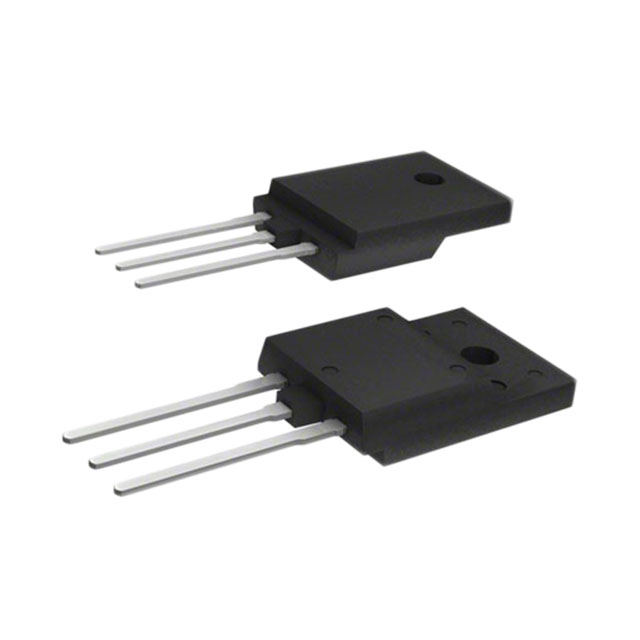

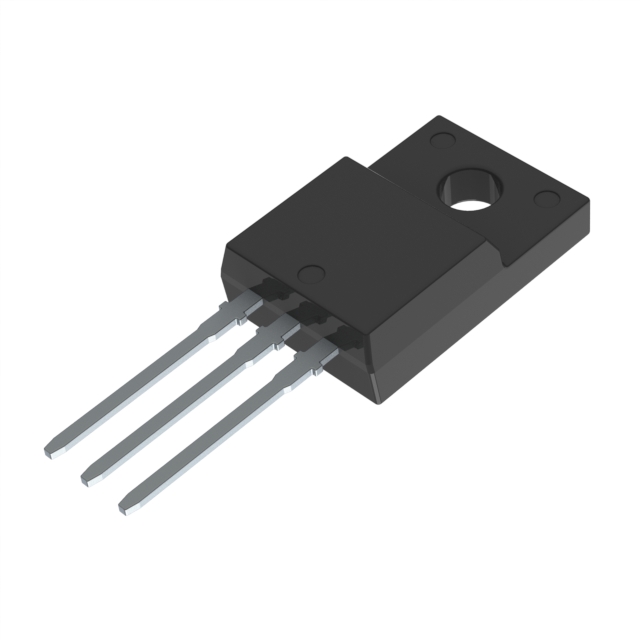

Images are for reference only.
See Product Specifications for product details.
Buy IPA100N08N3GXKSA1 with confidence from wisdommobility.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPA100N08N3GXKSA1 with confidence from wisdommobility.com, 1 Year Warranty
IPA100N08N3GXKSA1
| Part No | IPA100N08N3GXKSA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | MOSFET N-CH 80V 40A TO220-3 |
| Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
Specifications
Data sheet
| Drain to Source Voltage (Vdss): | 80V |
|---|---|
| Power Dissipation (Max): | 35W (Tc) |
| Package / Case: | TO-220-3 Full Pack |
| Mounting Type: | Through Hole |
| Packaging: | Tube |
| Supplier Device Package: | PG-TO220-FP |
| Vgs(th) (Max) @ Id: | 3.5V @ 46µA |
| Drive Voltage (Max Rds On, Min Rds On): | 6V, 10V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | N-Channel 80V 40A (Tc) 35W (Tc) Through Hole PG-TO220-FP |
| FET Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Email: | sale@wisdommobility.com |
| FET Type: | N-Channel |
| Series: | OptiMOS™ |
| Current - Continuous Drain (Id) @ 25°C: | 40A (Tc) |
| Other Names: | IPA00N08N3GXKSA1-ND IPA1-ND00N08N3GXKSA1-ND IPA100N08N3 G IPA100N08N3 G-ND IPA100N08N3G SP000473900 |
| Input Capacitance (Ciss) (Max) @ Vds: | 2410pF @ 40V |
| Vgs (Max): | ±20V |
| Rds On (Max) @ Id, Vgs: | 10 mOhm @ 40A, 10V |
| Technology: | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs: | 35nC @ 10V |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
Introduce
We can supply IPA100N08N3GXKSA1 , send us a request quote to request IPA100N08N3GXKSA1 pirce and lead time.Wisdom Mobility is a professional electronic components distributor. With 10+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPA100N08N3GXKSA1.The price and lead time for IPA100N08N3GXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part IPA100N08N3GXKSA1.We look forward to working with you to establish long-term relations of cooperation
