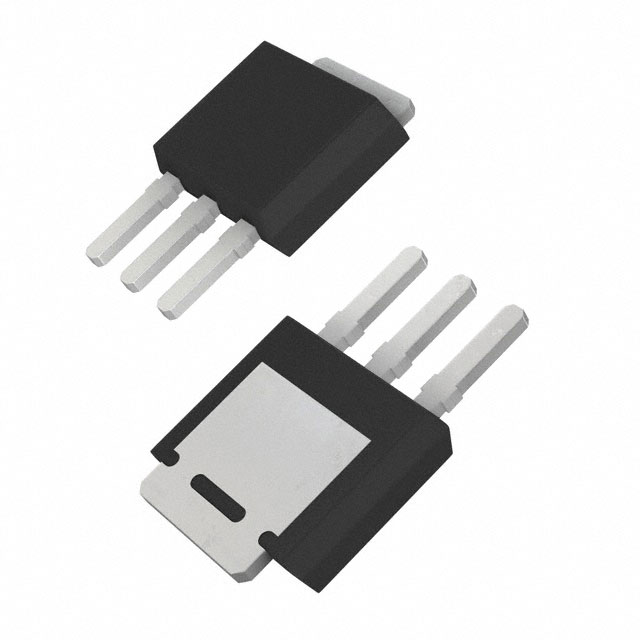

AOI4126
Part No | AOI4126 |
---|---|
Manufacturer | Alpha and Omega Semiconductor, Inc. |
Description | MOSFET N-CH 100V 7.5A TO251A |
Lead Free Status / RoHS Status | Lead Free / RoHS compliant |
Availability:17999 pcs | |||||
Quantity | Unit Price | Ext. Price | |||
---|---|---|---|---|---|
1+ | $0.3362 | $34 | |||
10+ | $0.3295 | $165 | |||
100+ | $0.3194 | $319 | |||
1000+ | $0.3093 | $309 | |||
10000+ | $0.2959 | $296 | |||
The above prices does not include taxes and freight rates, which will be calculated on the order pages. |
Specifications
Data sheet
Drain to Source Voltage (Vdss): | 100V |
---|---|
Power Dissipation (Max): | 3W (Ta), 100W (Tc) |
Package / Case: | TO-251-3 Stub Leads, IPak |
Mounting Type: | Through Hole |
Packaging: | Tube |
Supplier Device Package: | TO-251A |
Vgs(th) (Max) @ Id: | 4V @ 250µA |
Drive Voltage (Max Rds On, Min Rds On): | 7V, 10V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Detailed Description: | N-Channel 100V 7.5A (Ta), 43A (Tc) 3W (Ta), 100W (Tc) Through Hole TO-251A |
FET Feature: | - |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Manufacturer Standard Lead Time: | 26 Weeks |
Email: | sale@wisdommobility.com |
FET Type: | N-Channel |
Series: | SDMOS™ |
Current - Continuous Drain (Id) @ 25°C: | 7.5A (Ta), 43A (Tc) |
Input Capacitance (Ciss) (Max) @ Vds: | 2200pF @ 50V |
Vgs (Max): | ±25V |
Rds On (Max) @ Id, Vgs: | 24 mOhm @ 20A, 10V |
Technology: | MOSFET (Metal Oxide) |
Gate Charge (Qg) (Max) @ Vgs: | 42nC @ 10V |
Operating Temperature: | -55°C ~ 175°C (TJ) |
